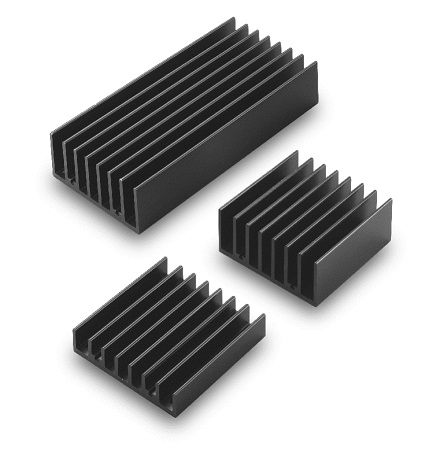

    HALF BRICK CASE HEATSINK ASSEMBLY




Heat Sink: M-C308
                 M-C091
                 M-C092
Thermal Pad: SZ56.9x60x0.25mm
Screw: SMP+SW M3x8L



  •

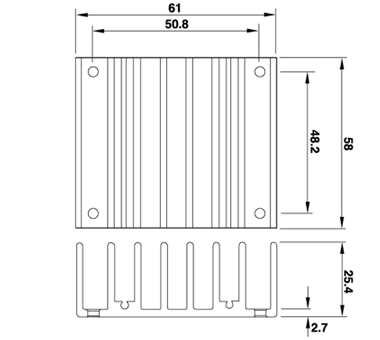

    HALF BRICK CASE HEATSINK

    All Dimensions In mm

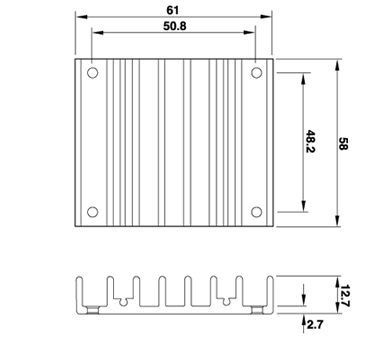

Longitudinal Fins
Model No. : M-C308

Rca:
3.9˚C/W (typ.), At natural convection
1.74˚C/W (typ.), At 100LFM
1.33˚C/W (typ.), At 200LFM
1.12˚C/W (typ.), At 300LFM
0.97˚C/W (typ.), At 400LFM




Transverse Fins
Model No. : M-C091

Rca:
4.7˚C/W (typ.), At natural convection
2.89˚C/W (typ.), At 100LFM
2.30˚C/W (typ.), At 200LFM
1.88˚C/W (typ.), At 300LFM
1.59˚C/W (typ.), At 400LFM




Transverse Fins
Model No. : M-C092

Rca:
3˚C/W (typ.), At natural convection
1.44˚C/W (typ.), At 100LFM
1.17˚C/W (typ.), At 200LFM
1.04˚C/W (typ.), At 300LFM
0.95˚C/W (typ.), At 400LFM



  •
    FULL BRICK CASE HEATSINK
        All Dimensions In mm

Transverse Fins
Model No. : M-B012

Thermal pad:SR60x115.8x0.23mm


Thermal Resistance:
2.07˚C/W (typ.), At natural convection




  •
    QUARTER BRICK CASE HEATSINK

    All Dimensions In mm


Longitudinal Fins
Model No. : M-C448

Thermal Pad: SZ56.9x35x0.25mm


Rca:
5.61°C/W (typ.), At natural convection
4.01°C/W (typ.), At 100LFM
3.39°C/W (typ.), At 200LFM
2.86°C/W (typ.), At 300LFM
2.49°C/W (typ.), At 400LFM



Transverse Fins
Model No. : M-C421

Thermal Pad: SZ56.9x35x0.25mm


Rca:
4.78˚C/W (typ.), At natural convection
2.44˚C/W (typ.), At 100LFM
2.06˚C/W (typ.), At 200LFM
1.76˚C/W (typ.), At 300LFM
1.58˚C/W (typ.), At 400LFM



  •
    LB CASE HEATSINK KIT
      All Dimensions In mm

Transverse Heat Sink: M-C655

Thermal Pad: SZ29.5x49.8x0.25mm


Rca:
8.99˚C/W (typ.), At natural convection
