隔离型直流电源(定电压输入)
2019-08-06 16:44 共有 人浏览
     模甸科技提供一系列完整的隔离与非隔离SMD包装直流对直流电源转换器，其中隔离系列之固定输入的F1-1W与F2-2W具有4200Vdc高隔离电压、额定工作电压250Vrms与400Vdc；另有稳压的FBW-2W，4:1宽输入范围系列可供选择，规格包含连续短路保护与遥控开关装置；以上产品皆另有卷轴包装可订购。非隔离系列则有SVR-1.0A，产品具有高效率与可调式输出电压并拥有极佳的线变动率与负载变动率。
系列 输出功率 输入电压范围 输出电压 I/O 隔离电压 包装(Inch) 非/稳压 认证



NEW
F1-1W		 1W 3.3, 5 (±10%) 3.3, 5, ±3.3, ±5 4.2KV SMD (0.5(0.6)*0.44*0.27) Unregulated V



NEW
F2-2W		 2W 3.3, 5 (±10%) 3.3, 5, ±3.3, ±5 4.2KV SMD (0.5(0.6)*0.44*0.27) Unregulated

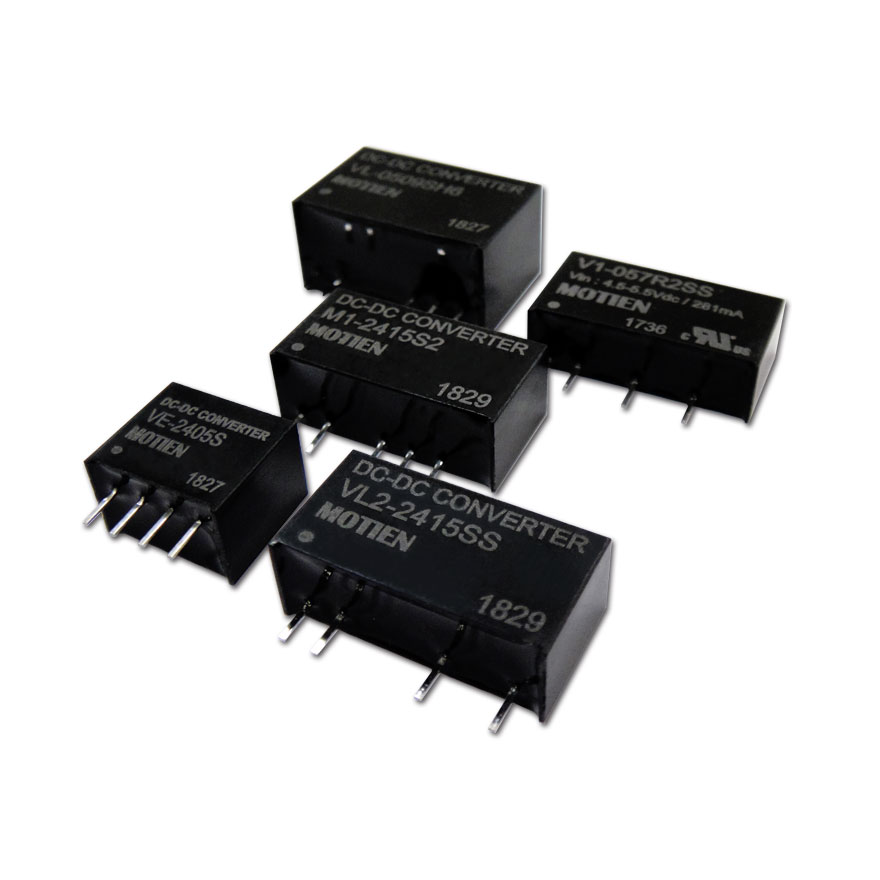

模甸科技提供一系列完整的隔离稳压、半稳压与非稳压输出直流对直流电源转换器，并有多种产品包装选择如 SIP 4、SIP 6 与 SIP 7，输出瓦特数介于0.25W至3W。MBW-3W 为稳压 4:1 输入范围，单/双输出产品，为3W 产品当中最小包装的系列。全系列产品皆具有高效率与CE认证。
系列 输出功率 输入电压范围 输出电压 I/O 隔离电压 包装(Inch) 非/稳压 认证

M1-1W

 1W 5, 12, 15, 24, 48 (±10%) 5, 9, 12, 15, ±5, ±9, ±12, ±15 1KV~3KV SIP 7 (0.76*0.24(0.28)*0.39) Semi-Regulated -

M1-2W

 2W 5, 12, 15, 24 (±10%) 5, 9, 12, 15, ±5, ±9, ±12, ±15 1KV~3KV SIP 7 (0.76*0.28*0.39) Semi-Regulated -

M1-3W

 3W 5, 12 (±10%) 5, 9, 12, 15, ±5, ±9, ±12, ±15 1KV~3KV SIP 7 (0.76*0.28*0.39) Semi-Regulated -

M4-1W

 1W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15 1KV~3KV SIP 7 (0.76*0.28*0.39) Regulated -

T1-1W

 1W 5, 12, 24 (±10%) 5, 12, 15, ±5, ±12, ±15 1.5KV~3KV SIP 7 (0.76*0.24*0.39) Unregulated -

V1-1W

 1W 3.3, 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV SIP 7 (0.76*0.24*0.39) Unregulated V

V1-0.5W

 0.5W 5, 12, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV SIP 7 (0.76*0.24*0.39) Unregulated -

V1-0.75W

 0.75W 5, 12, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV SIP 7 (0.76*0.24*0.39) Unregulated -

V1-S/D01(02)-1W

 1W 5, 12, 24 (±10%) 5/3.3, 5/7.2, 5/9, 5/12, 5/15, 5/18, 5/24, 3.3/3.3, 5/5, 7.2/7.2, 9/9, 12/12, 15/15,18/18, 24/24 1KV~3KV SIP 7 (0.76*0.24*0.39) Unregulated -

V3-2W

 2W 3.3, 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV SIP 7 (0.76*0.24*0.39) Unregulated -

V3-S/D01(02)-2W

 2W 5, 12, 24 (±10%) 5/3.3, 5/7.2, 5/9, 5/12, 5/15, 5/18, 5/24, 3.3/3.3, 5/5, 7.2/7.2, 9/9, 12/12, 15/15,18/18, 24/24 1KV~3KV SIP 7 (0.76*0.24*0.39) Unregulated -

V4-1W

 1W 3.3, 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15 1KV~3KV SIP 7 (0.76*0.28*0.39) Regulated -

VA-0.5W

 0.5W 3.3, 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV SIP 4 (0.46*0.24*0.40) Unregulated -

VA-1W

 1W 3.3, 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV SIP 4 (0.46*0.24*0.40) Unregulated -

VA-1.5W

 1.5W 5, 12, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV SIP 4 (0.46*0.24*0.40) Unregulated -

VA-L-0.25W

 0.25W 3.3, 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV SIP 4 (0.46*0.24*0.40) Unregulated -

VE-2W

 2W 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 24 1KV~3KV SIP 4 (0.46*0.29*0.40) Unregulated -

VL-1W

 1W 5, 9, 12, 15, 24 (±10%) 3.3, 5, 9, 12, 15, 15/-9 6KV SIP 7 (0.77*0.39*0.49) Unregulated -

VL2-2W

 2W 5, 12, 15, 24 (±10%) 3.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15, 15/-9 5.2KV SIP 7 (0.76*0.28*0.39) Unregulated -

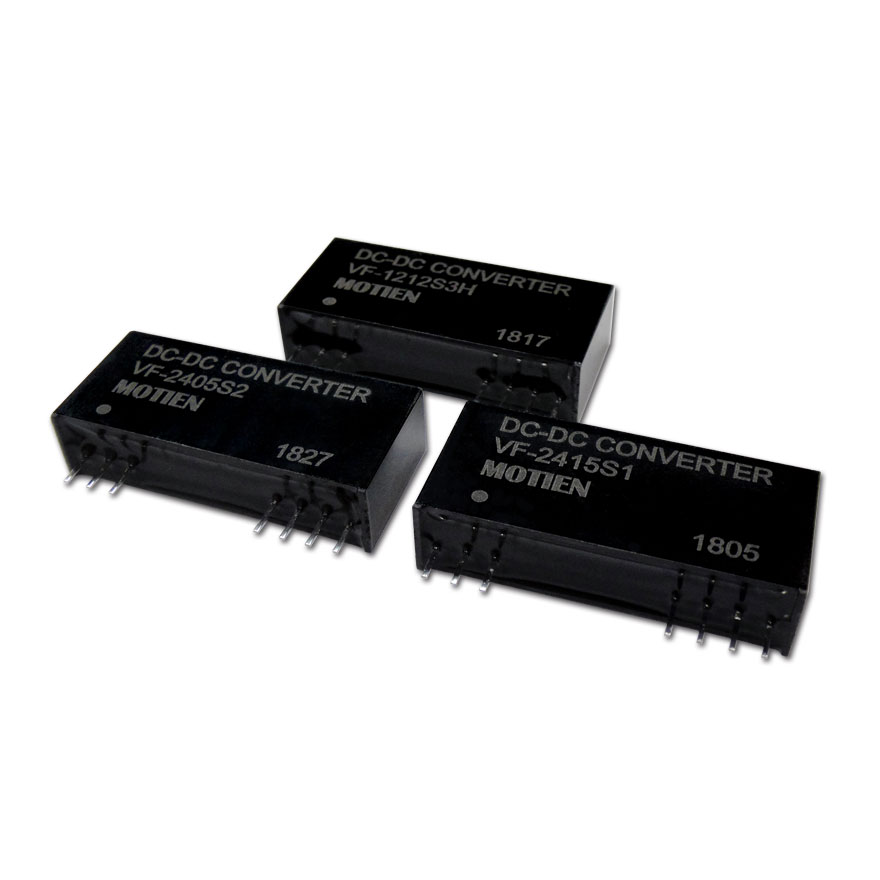

模甸科技提供一系列完整的隔离稳压输出直流对直流电源转换器，包含 SIP 12包装的固定输入范围稳压单输出产品，输出瓦特数介于1.5W至3W。全系列皆内建短路保护装置并具备高效率与CE认证。
系列 输出功率 输入电压范围 输出电压 I/O 隔离电压 包装(Inch) 非/稳压 认证

VF-1.5W

 1.5W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~5.2KV SIP 12 (1.26*0.32*0.57) Regulated -

VF-2W

 2W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~5.2KV SIP 12 (1.26*0.32*0.57) Regulated -

VF-3W

 3W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~5.2KV SIP 12 (1.26*0.32*0.57) Regulated -
模甸科技提供一系列完整的隔离稳压与非稳压输出直流对直流电源转换器，并有多种产品包装选择如 DIP 8 与 DIP 14，输出瓦特数介于0.5W到2W；另有独立双输出产品可供选择。除了 V1-1W 已获得 UL 认证之外；全系列产品皆具备高效率与CE认证。
系列 输出功率 输入电压范围 输出电压 I/O 隔离电压 包装(Inch) 非/稳压 认证

M4-1W

 1W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15 1KV~3KV DIP 14 (0.8*0.4*0.27) Regulated -

V1-0.5W

 0.5W 5, 12, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV DIP 14 (0.8*0.4*0.27) Unregulated -

V1-0.75W

 0.75W 5, 12, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV DIP 14 (0.8*0.4*0.27) Unregulated -

V1-1W

 1W 3.3, 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV DIP 14 (0.8*0.4*0.27) Unregulated V

V1-S/D01(02)-1W

 1W 5, 12, 24 (±10%) 5/3.3, 5/7.2, 5/9, 5/12, 5/15, 5/18, 5/24, 3.3/3.3, 5/5, 7.2/7.2, 9/9, 12/12, 15/15,18/18, 24/24 1KV~3KV DIP 14 (0.8*0.4*0.27) Unregulated -

V3-2W

 2W 3.3, 5, 12, 15, 24, 48 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV DIP 14 (0.8*0.4*0.27) Unregulated -

V3-S/D01(02)-2W

 2W 5, 12, 24 (±10%) 5/3.3, 5/7.2, 5/9, 5/12, 5/15, 5/18, 5/24, 3.3/3.3, 5/5, 7.2/7.2, 9/9, 12/12, 15/15,18/18, 24/24 1KV~3KV DIP 14 (0.8*0.4*0.27) Unregulated -

V4-1W

 1W 3.3, 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15 1KV~3KV DIP 14 (0.8*0.4*0.27) Regulated -

VA-0.5W

 0.5W 3.3, 5, 12, 15, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV DIP 8 (0.50*0.40*0.27) Unregulated -

VA-1W

 1W 3.3, 5, 12, 15, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV DIP 8 (0.50*0.40*0.27) Unregulated -

VA-1.5W

 1.5W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV DIP 8 (0.50*0.40*0.27) Unregulated -

VA-D01-1W

 1W 3.3, 5, 12, 15, 24 (±10%) 3.3/3.3, 5/5, 7.2/7.2, 9/9, 12/12, 15/15, 18/18, 24/24 1KV~3KV DIP 8 (0.50*0.40*0.27) Unregulated -

VA-DD1-1W

 1W 3.3, 5, 12, 15, 24 (±10%) ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~3KV DIP 8 (0.50*0.40*0.27) Unregulated -

VA-L-0.25W

 0.25W 3.3, 5, 12, 15, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24 1KV~3KV DIP 8 (0.50*0.40*0.27) Unregulated -

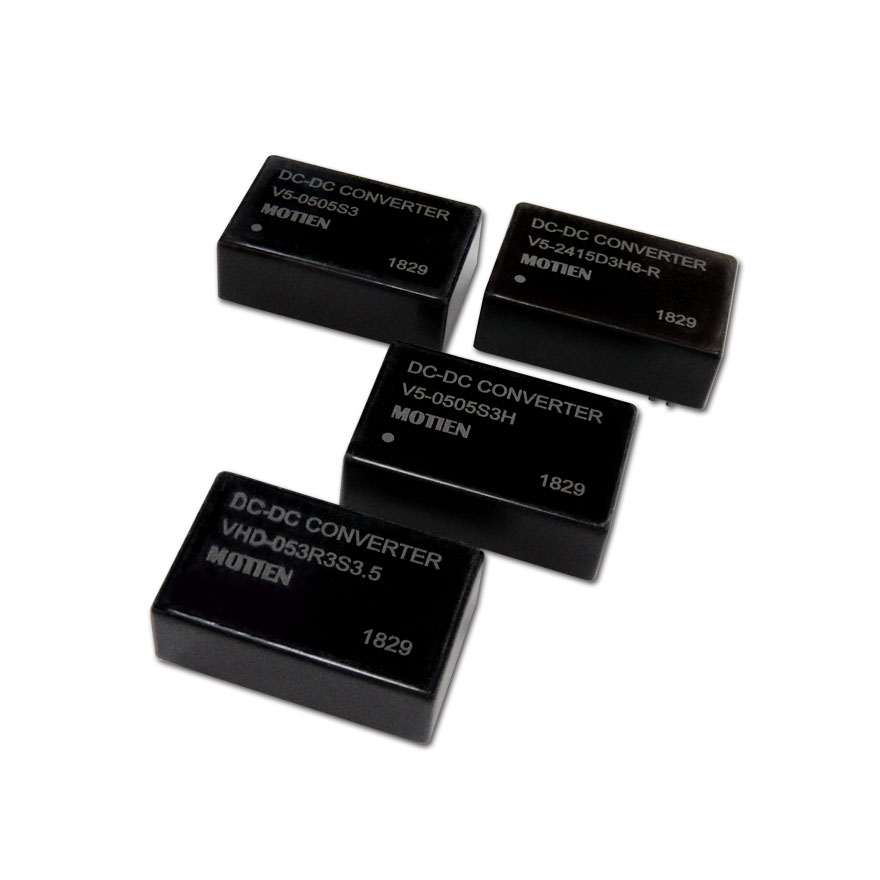

模甸科技提供一系列完整的隔离稳压输出直流对直流电源转换器，包含固定输入电压的标准DIP 24包装产品，输出瓦特数介于1.5W到3W;VHD系列则为5KVAC 强化绝缘系列。全系列皆内建短路保护装置并具备高效率与CE认证。
系列 输出功率 输入电压范围 输出电压 I/O 隔离电压 包装(Inch) 非/稳压 认证

V5-1.5W

 1.5W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV DIP 24 (1.25*0.8*0.4) Regulated -

V5-2W

 2W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV DIP 24 (1.25*0.8*0.4) Regulated -

V5-3W

 3W 5, 12, 24 (±10%) 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1KV~6KV DIP 24 (1.25*0.8*0.4) Regulated -

VHD-3.5W

 3.5W 5, 12 (±20%) 3.3, 5, 12, 15 5000Vac DIP 24 (1.25*0.8*0.4) Regulated -
