| 系列 | 输出功率 | 输入电压范围 | 输出电压 | I/O 隔离电压 | 包装(Inch) | 非/稳压 | 认证 |
|---|---|---|---|---|---|---|---|

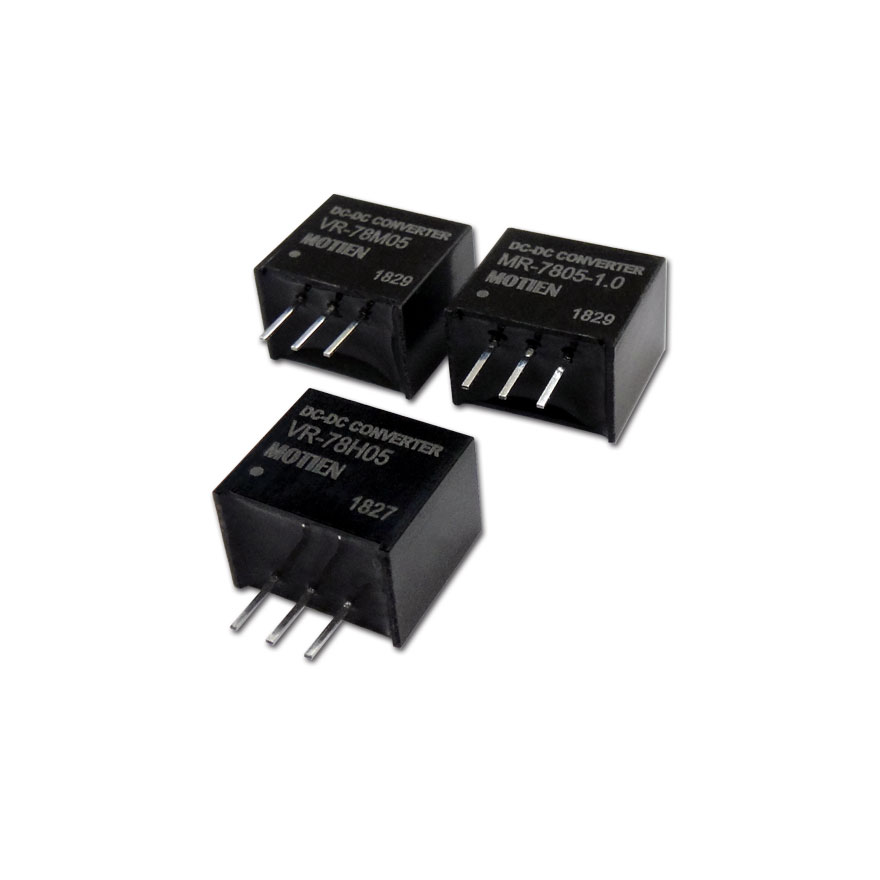

MR-78XX-0.5A |
0.5A | 4.5-28, 7-28, 14-28, 17-28 | 3.3, 5, 12, 15 | Non-Isolation | SIP 3 (0.46*0.29*0.40) | Regulated | - |
MR-78XX-1A |
1A | 7-28, 8-28 | 3.3, 5 | Non-Isolation | SIP 3 (0.46*0.29*0.40) | Regulated | - |
VR-78M-0.5A |
0.5A | 4.75-30, 4.75-34, 6.5-34, 8-34, 9-34, 11-34, 15-34, 18-34 | 1.5, 1.8, 2.5, 3.3, 5, 6.5, 7.2, 9, 12, 15 | Non-Isolation | SIP 3 (0.46*0.29*0.40) | Regulated | - |
VR-78XX-1A |
1A | 4.75-18, 6.5-18 | 1.5, 1.8, 2.5, 3.3, 5 | Non-Isolation | SIP 3 (0.46*0.29*0.40) | Regulated | - |
VR-78H-0.5A |
0.5A | 9-72, 14-72, 17-72, 21-72 | 3.3, 5, 6.5, 7.2, 9, 12, 15 | Non-Isolation | SIP 3 (0.46*0.29*0.40) | Regulated |
|
