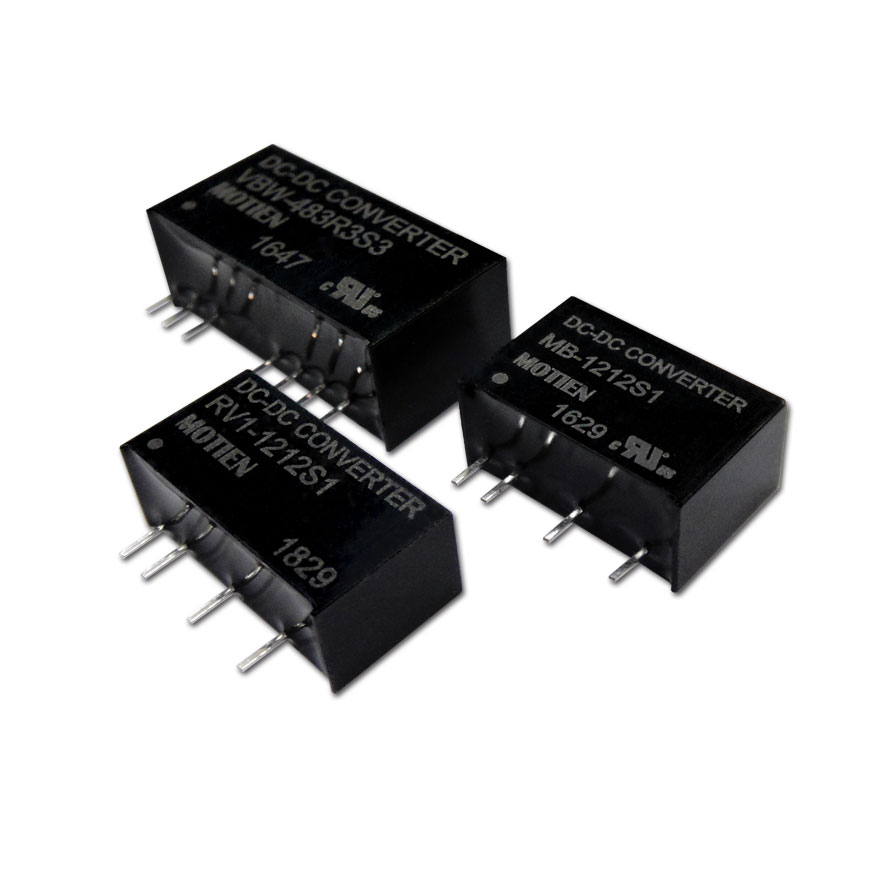

模甸科技提供一系列完整的隔离稳压直流对直流电源转换器，并有多种产品包装选择如 SIP 6、SIP 7、SIP 8 与 SIP 9，2:1与4:1宽输入范围之稳压单/双输出产品，输出瓦特数介于1W至6W。全系列皆内建短路保护装置并具有高效率与CE认证。另外MB/VB/VBW更已取得UL安规认证。| 系列 | 输出功率 | 输入电压范围 | 输出电压 | I/O 隔离电压 | 包装(Inch) | 非/稳压 | 认证 |
|---|---|---|---|---|---|---|---|
MB-1W |
1W | 4.5-9, 9-18, 18-36, 36-75 | 5, 12, 15, 24, ±12, ±15 | 1.5KV | SIP 6 (0.67*0.30*0.43) | Regulated | V |
MBW-3W |
3W | 4.5-18, 9-36, 18-75 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.6KV | SIP 6 (0.69*0.4*0.48) | Regulated | - |
RBW-2W |
2W | 4.5-18, 9-36, 18-75 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.6KV | SIP 8 (0.86*0.36*0.44) | Regulated | - |
RBW-3W |
3W | 4.5-18, 9-36, 18-75 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.6KV | SIP 8 (0.86*0.36*0.44) | Regulated | - |
RV1-1W |
1W | 4.5-9, 9-18, 18-36 | 5, 12 | 1.5KV~3KV | SIP 7 (0.76*0.28*0.39) | Regulated | - |
VB-1W |
1W | 4.5-9, 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1KV~3KV | SIP 8 (0.86*0.36*0.44) | Regulated | V |
VB-2W |
2W | 4.5-9, 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1KV~3KV | SIP 8 (0.86*0.36*0.44) | Regulated | V |
VB-3W |
3W | 4.5-9, 9-18, 18-36, 36-72 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.6KV | SIP 8 (0.86*0.36*0.44) | Regulated | V |
VB-6W |
6W | 4.5-9, 9-18, 18-36, 36-75 | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | 1.5KV~3KV | SIP 8 (0.86*0.36*0.44) | Regulated | V |
VB-9W |
9W | 9-18, 18-36, 36-75 | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | 1.6KV | SIP 8 (0.86*0.38*0.44) | Regulated | V |
VBW-2W |
2W | 9-36, 18-75 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.5KV | SIP 9 (1.02*0.36*0.49) | Regulated | V |
VBW-3W |
3W | 9-36, 18-75 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.5KV | SIP 9 (1.02*0.36*0.49) | Regulated | V |
VBW-6W |
6W | 9-36, 18-75 | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | 1.5KV~3KV | SIP 8 (0.86*0.36*0.44) | Regulated | V |
VBW-9W |
9W | 9-36, 18-75 | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 | 1.6KV | SIP 8 (0.86*0.38*0.44) | Regulated | V |
